机械阀
HE series clean type

  • HE series clean type

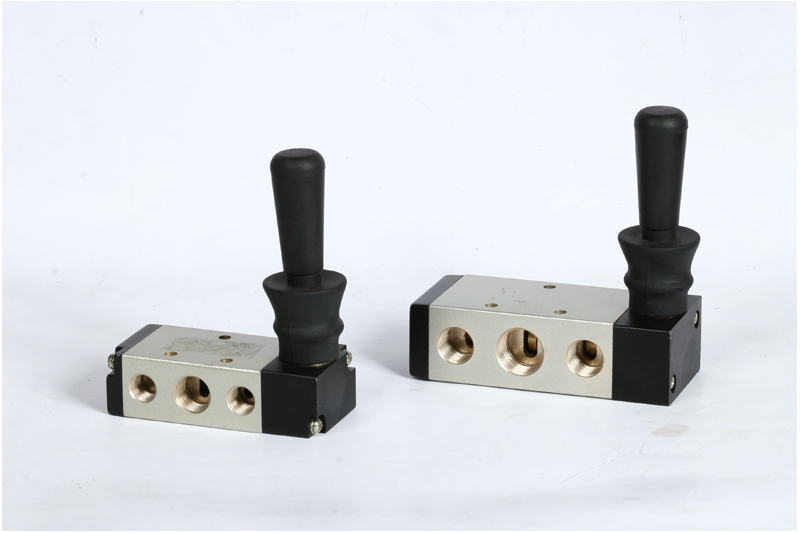

    Hand-Pull Valve
    Ltem

    Specification    		 Valve Type Pipe Thread Orifice
    mm    		 Applicable
    Fluid    		 Pressure
    Range    		 Operating
    Method    		 Applicable
    Temperature
    YQ2521B-08
    2Position/5Way
    G1/4"
    8
    Compressed
    Air
    0～1.0Mpa
    Direct Action Type
    0～60ºC
    YQ2531B-10
    G3/8"
    10
    YQ2541B-15
    G1/2"
    5
    YQ3521B-08
    3Position/5Way
    G1/8"
    8
    YQ3521B-10
    G3/8"
    10
    YQ3541B-15
    G1/2"
    5
  • HE series clean type
    Hand-draw Valve
    Ltem

    Specification
    Valve Type
    Pipe Thread
    Orifice
    mm
    Applicable
    Fluid
    Pressure
    Range
    Operating
    Method
    Applicable
    Temperature
    YQ2311H-06
    2Position/3Way
    G1/8"
    6
    Compressed
    Air
    0ⅵ1.0Mpa
    Direct Action Type
    0ⅵ60ìC
    YQ2321H-08
    G1/4"
    8
    YQ2331H-10
    G3/8"
    10
    YQ2341H-015
    G1/2"
    15
    YQ2511H-06
    2Position/5Way
    G1/8"
    6
    YQ2521H-08
    G1/4"
    8
    YQ2531H-10
    G3/8"
    10
    YQ2541H-15
    G1/2"
    15
  • HE series clean type

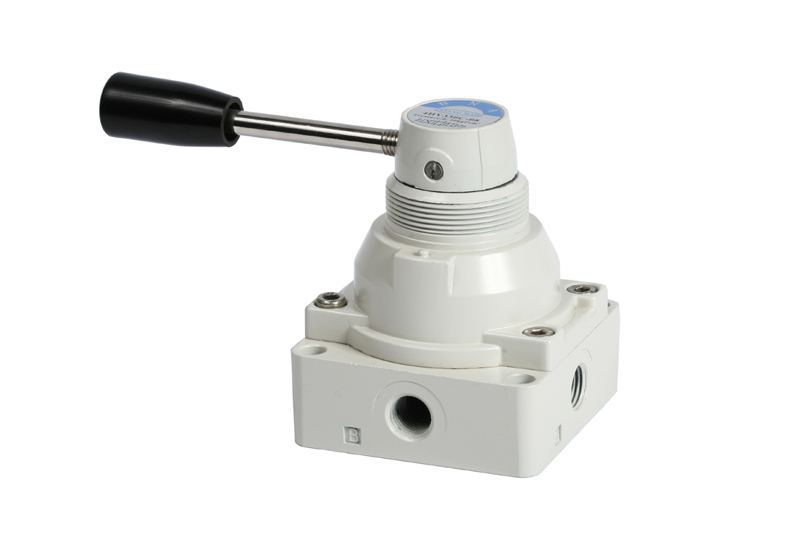

    Hand-switching Valve
    HE series clean type
    Hand-switching Valve

    Ltem

    Specification

    Valve Type

    Pipe Thread

    Nominal
    Diameter

    Applicable
    Fluid

    Pressure
    Range

    Operating
    Method

    Applicable
    Temperature

    YQ34-S-06

    3Position/4Way

    G1/8"

    6

    Compressed
    Air

    0～1.0Mpa

    Direct Action Type

    0～60ºC

    YQ34-S-08

    G1/4"

    8

    YQ34-S-10

    G3/8"

    10

    YQ34-S-15

    G1/2"

    15

  • HE series clean type
    Foot Valve
    HE series clean type
    Foot Valve
    Ltem

    Specification
    Valve Type
    Pipe Thread
    Orifice
    mm
    Applicable
    Fluid
    Pressure
    Range
    Operating
    Method
    Applicable
    Temperature
    YQ23-J-08
    2Position/3Way
    G1/4"
    8
    Compressed
    Air
    0～0.8Mpa
    Direct Action Type
    0～60ºC
    YQ24-J-08
    2Position/4Way
    G1/4"
    8
    YQ25-J-08
    2Position/5Way
    G1/4"
    8
    YQ25-J-08L
    2Position/5Way
    G1/4"
    8
    YQ25-J-08G
    2Position/5Way
    G1/4"
    8
    YQ25-J-08LG
    2Position/5Way
    G1/4"
    8
  • HE series clean type

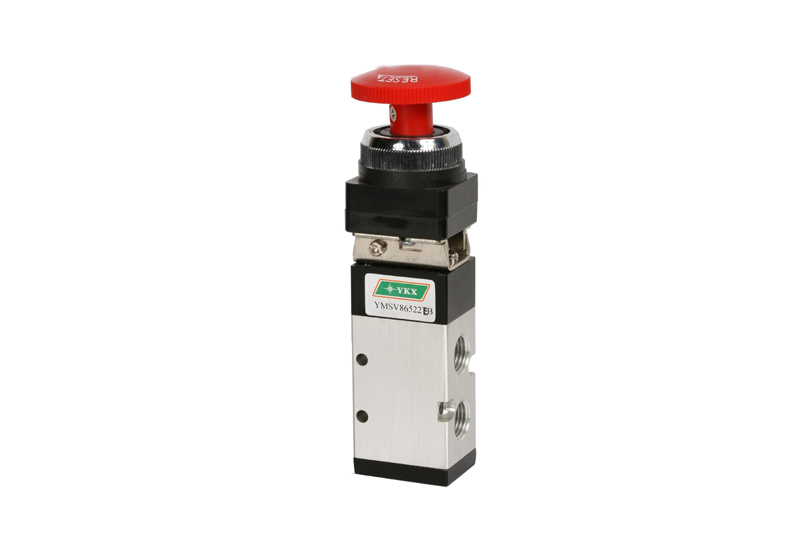

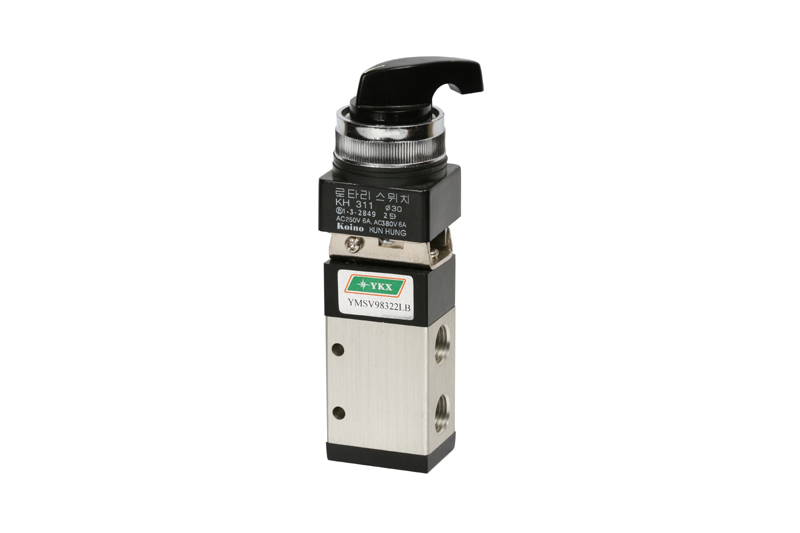

    G321 Mechanical Valve
    Specification
    G321R、PP、PPL、PB、EB、TB、LB
    Fluid
    Compressed Air
    Valve Type
    2 Position/3Way
    Pipe Size
    G1/8"
    Pressure Range
    0～1.0MPa
    Operating Method
    Diect Action Type
    Applicable Tempature
    -5～60℃
    The Button’s Standard Color
    Black:LB/Red:PP,PPL,PB,EB,TB
    The Button’s Color Available
    Green,Black:PP,PPL,PB,TB
  • HE series clean type
    G322 Mechanical Valve
    Specification
    G322R、PP、PPL、PB、EB、TB、LB
    Fluid
    Compressed Air
    Valve Type
    2 Position/3Way
    Pipe Size
    G1/4"
    Pressure Range
    0～1.0MPa
    Operating Method
    Diect Action Type
    Applicable Tempature
    -5～60℃
    The Button’s Standard Color
    Black:LB/Red:PP,PPL,PB,EB,TB
    The Button’s Color Available
    Green,Black:PP,PPL,PB,TB
  • HE series clean type
    G522 Mechanical Valve
    Specification
    G522R、PP、PPL、PB、EB、TB、LB
    Fluid
    Compressed Air
    Valve Type
    2 Position/5Way
    Pipe Size
    G1/4"
    Pressure Range
    0～1.0MPa
    Operating Method
    Diect Action Type
    Applicable Tempature
    -5～60℃
    The Button’s Standard Color
    Black:LB/Red:PP,PPL,PB,EB,TB
    The Button’s Color Available
    Green,Black:PP,PPL,PB,TB
  • HE series clean type
    Check Valve
    Ltem

    Specification

    Pipe Thread

    Nominal
    Diameter
    mm

    Applicable
    Fluid

    Pressure
    Range

    Min.Operation
    Pressure

    Applicable
    Temperature

    CV-06

    G1/8"

    6

    Compressed
    Air

    0.05~1.2Mpa

    0.05Mpa

    -5~60℃

    CV-08

    G1/4"

    8

    CV-10

    G3/8"

    10

    CV-15

    G1/2"

    15

    CV-20

    G3/4"

    20

    CV-25

    G1"

    25

  • HE series clean type
    Flow Control Valve

    Specification
    item

    Pipe Thread

    Applicable
    Fluid

    Pressure
    Range

    Min.Operation
    Pressure

    Applicable
    Temperature

    SV-06

    FCV-01

    G1/8"

    Compressed
    Air

    0.03Mpa

    0.05～1.2Mpa

    -5~99ºC

    FCV-02

    G1/4"

    FCV-03

    G3/8"

    FCV-04

    G1/2"

    SV-20

    FCT-01

    G1/8"

    0.05～1.2Mpa

    -5~99ºC

    FCT-02

    G1/4"

    FCT-03

    G3/8"

    FCT-04

    G1/2"

  • Ltem

    Specification    		 Pipe Thread Nominal
    Diameter
    mm    		 Applicable
    Fluid    		 Pressure
    Range    		 Min.Operation
    Pressure    		 Applicable
    Temperature
    QEV-06 G1/8" 6 Compressed
    Air    		 0.05~1.2Mpa ≤0.03S -5~60℃
    QEV-08 G1/4" 8
    QEV-10 G3/8" 10 ≤0.04S
    QEV-15 G1/2" 15
    QEV-20 G3/4" 20 ≤0.05S
    QEV-25 G1" 25
  • Ltem

    Specification
    Pipe Thread
    Nominal
    Diameter
    mm
    Applicable
    Fluid
    Pressure
    Range
    Min.Operation
    Pressure
    Applicable
    Temperature
    SV-06 G1/8" 6 Compressed
    Air    		 0.05~1.2Mpa 0.05Mpa -5~60℃
    SV-08 G1/4" 8
    SV-10 G3/8" 10
    SV-15 G1/2" 15
    SV-20 G3/4" 20
    SV-25 G1" 25
