80 系列气源处理件
80 series air treatment unit is old style,with tight structure,large flow rate,steadily output and simply installation.This series air preparation units only have one body size but have three different ioint size,all equpped with Metal Bowl Guarding or Plastic Bowl Guarding.
-

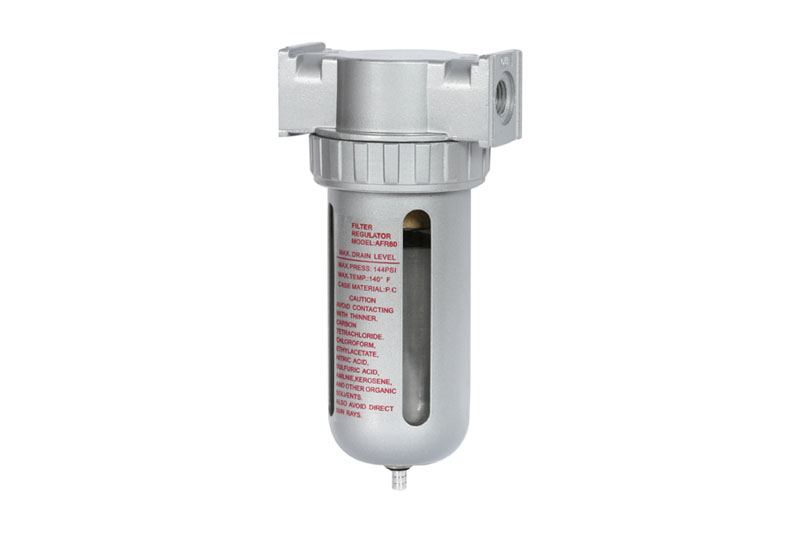

AF802a AF803a AF804a

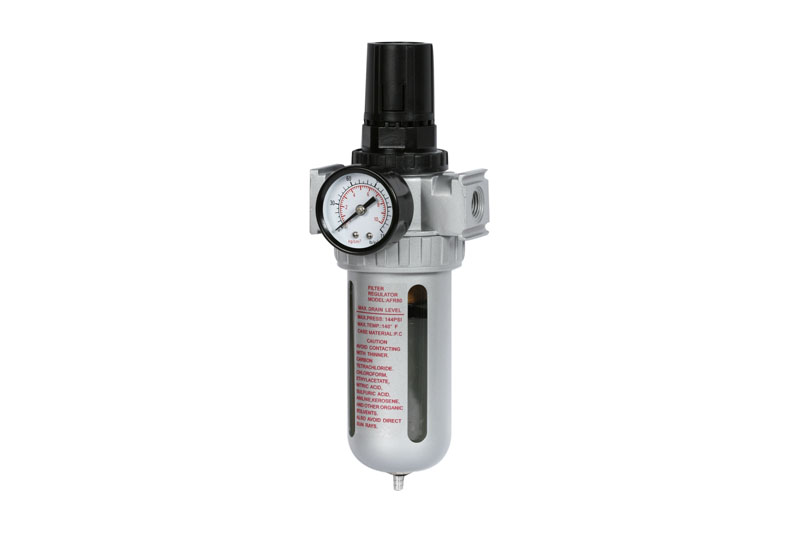

AFR802a AFR803a AFR804a
AFRL802a AFRL803a AFRL804a

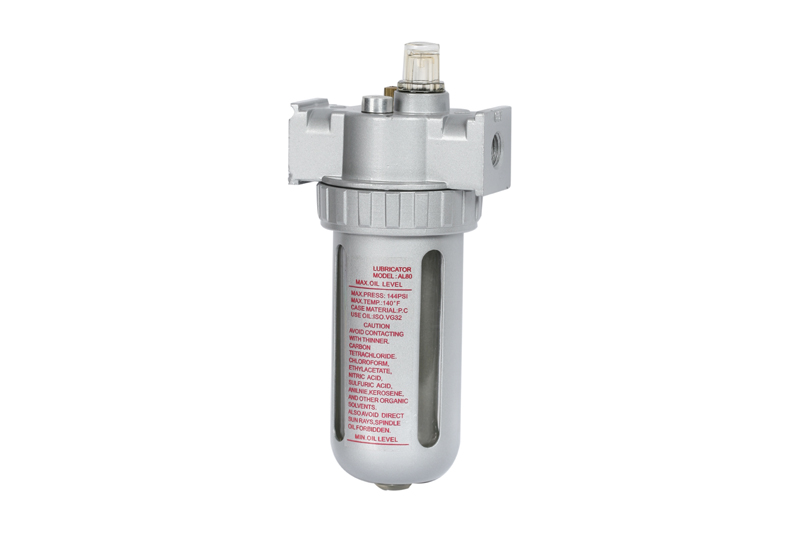

AL802a AL803a AL804a

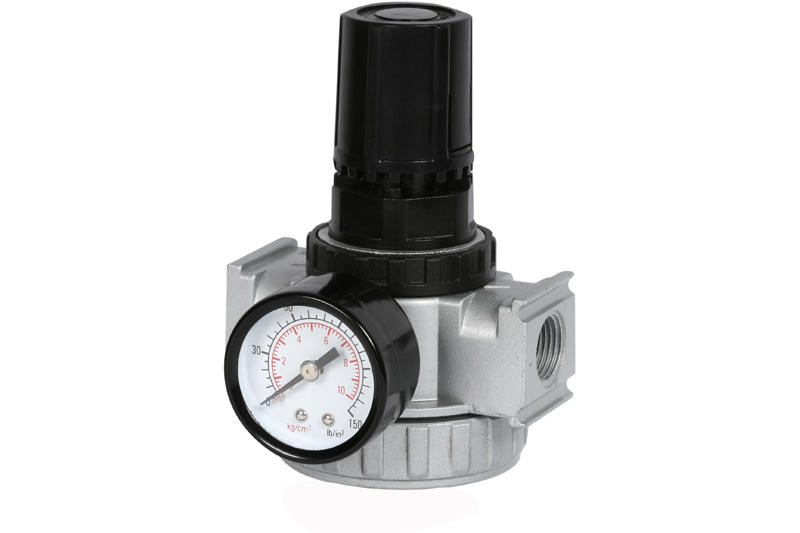

AR802 AR803 AR80480 Series Specifications: Model Air filter AF802 AF803 AF804 Regulator AR802 AR803 AR804 Lubricator AL802 AL803 AL804 Filter-Regulator AFR802 AFR803 AFR804 口径 / Port size(BSP) 1/4" 3/8" 1/2" 压力表口径 / Port size for pressure gauge 1/8" BSP 水杯容量 / capacity of filter cup 40 cm3 最大空气流量 / Max. Flow rate 4000L/min 油杯容量 / capacity of lubricator cup 130cm3 油滴最小流量 / Min.operating oil rate 50L/min 最大供应压力 / Max.supply pressure 15kgf/cm2 最大操作压力 / Max.operating pressure 9.9kgf/cm2 调压范围 / Regulating range 0.5~8.5kgf/cm2 环境和介质温度/ Ambient and media temperature 5~60℃ 过滤孔径 / Filtration Standard: 5um,Option:2,10,20,40,70,100um 建议用油 / Recommended oil Turbin oil ISO VG32 本体材料 / Body material Aluminum Die-casting Forming 杯材料 / Bowl material Polycarbonate 阀型 / Construction Relieving type
-

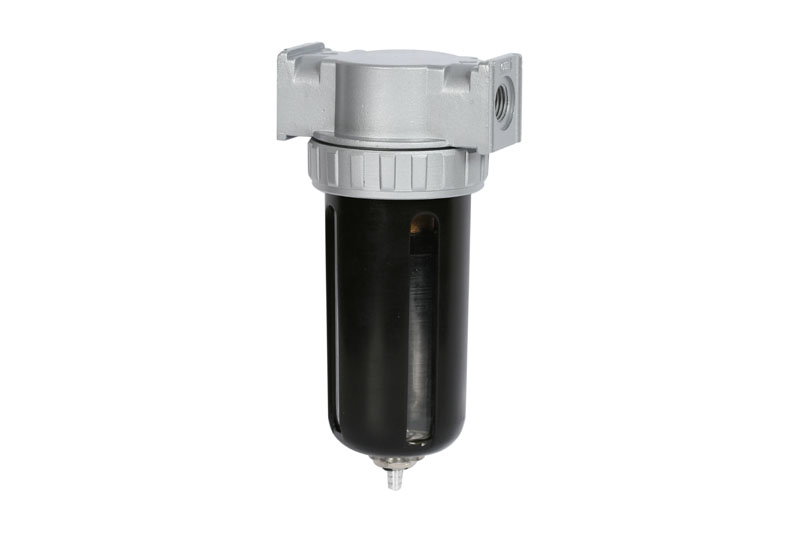

AF802b AF803b AF804b

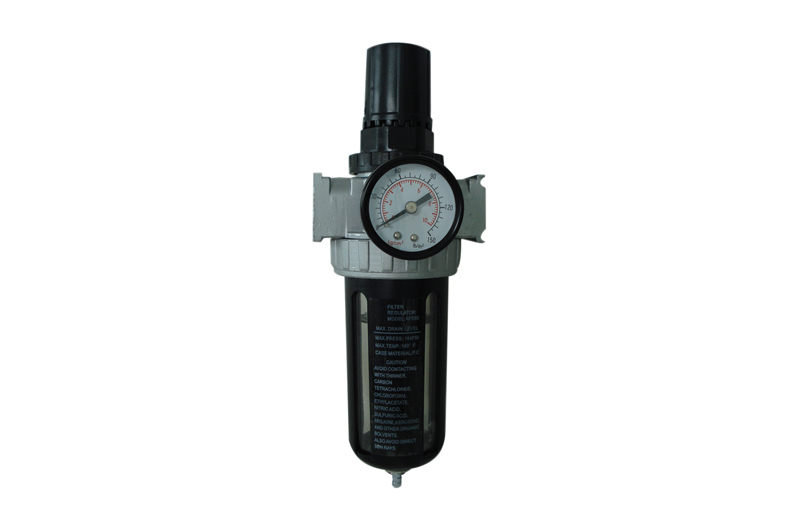

AFR802b AFR803b AFR804b
AFRL802b AFRL803b AFRL804b

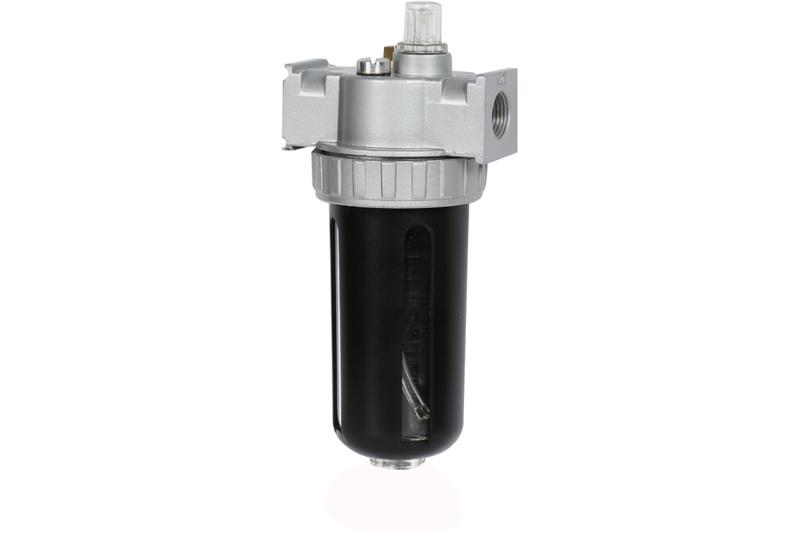

AL802b AL803b AL804b
AR802 AR803 AR80480 Series Specifications: Model Air filter AF802 AF803 AF804 Regulator AR802 AR803 AR804 Lubricator AL802 AL803 AL804 Filter-Regulator AFR802 AFR803 AFR804 口径 / Port size(BSP) 1/4" 3/8" 1/2" 压力表口径 / Port size for pressure gauge 1/8" BSP 水杯容量 / capacity of filter cup 40 cm3 最大空气流量 / Max. Flow rate 4000L/min 油杯容量 / capacity of lubricator cup 130cm3 油滴最小流量 / Min.operating oil rate 50L/min 最大供应压力 / Max.supply pressure 15kgf/cm2 最大操作压力 / Max.operating pressure 9.9kgf/cm2 调压范围 / Regulating range 0.5~8.5kgf/cm2 环境和介质温度/ Ambient and media temperature 5~60℃ 过滤孔径 / Filtration Standard: 5um,Option:2,10,20,40,70,100um 建议用油 / Recommended oil Turbin oil ISO VG32 本体材料 / Body material Aluminum Die-casting Forming 杯材料 / Bowl material Polycarbonate 阀型 / Construction Relieving type
