二位二通电磁阀是现代化工业管道中的开关元件，利用电磁吸力和介质的工作压差，完成系统中气体、液体、蒸汽、油品、弱酸、弱碱等各种介质的自动控制。
-

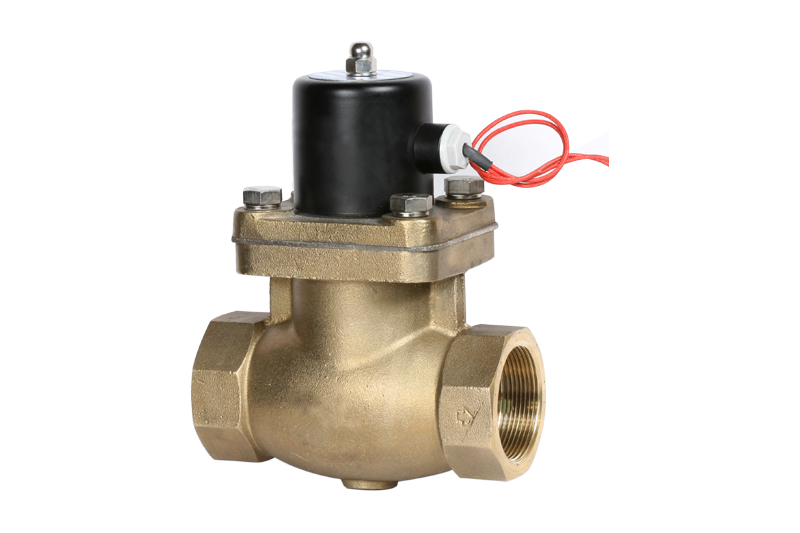

US-15 US-20 US-25 US-35 US-40 US-50MODEL US-15 US-20 US-25 US-35 US-40 US-50 Pipe Size G1/2" G3/4" G1" G11/4" G11/2" G2" Orifice 17mm 22mm 30mm 50mm CV Value 4.8 12 20 48 Working Medium Air,Water,Steam Motion Pattern Guide Type Type Normal Close Type Operation Fluid Viscosity Below 20 CS Working-pressure Air,Water,Steam:0.1～1.5MPa Max.Pressure Resistance 1.5MPa Operating Temperature -5～185℃ Voltage Range ±10% Body Material Brass Oil Seal Material EPDM Voltage AC380V,220V,110V,36V,24V
DC220V,110V,36V,24V,12V
-

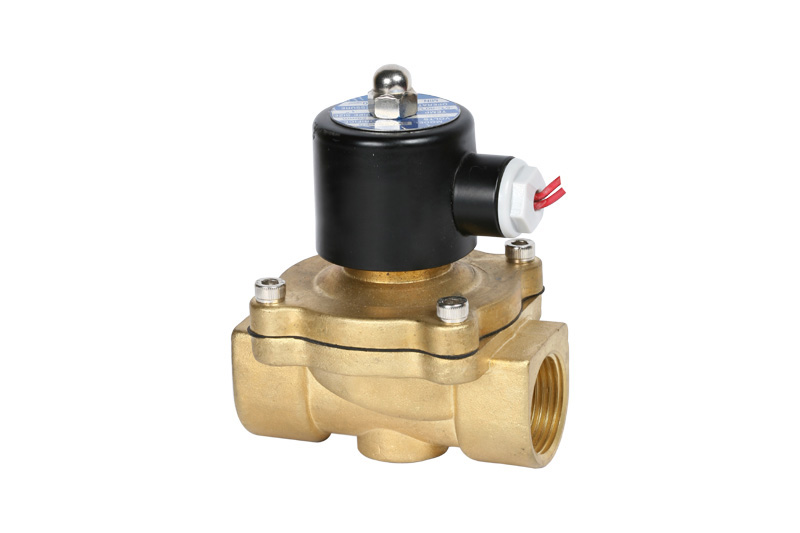

2W160-10 2W160-15 2W200-20 2W250-25 2W350-35 2W500-50MODEL2W160-012W160-152W200-202W250-252W350-352W400-402W500-50Pipe SizeG3/8"G1/2"G3/4"G1"G11/4"G11/2"G2"Orifice16mm20mm25mm35mm40mm50mmCV Value4.87.612242848Working MediumAir,Water,OilMotion PatternDirect Drive TypeTypeNormal Close TypeOperation Fluid ViscosityBelow 20 CSWorking-pressureAir:0～1.0MPa;Water&Oil:0～0.7MPaMax.Pressure Resistance1.0MPaOperating Temperature-5～99℃Voltage Range±10%Body MaterialBrassOil Seal MaterialNBR or VITONVoltageAC380V,220V,110V,36V,24V
DC220V,110V,36V,24V,12V
-

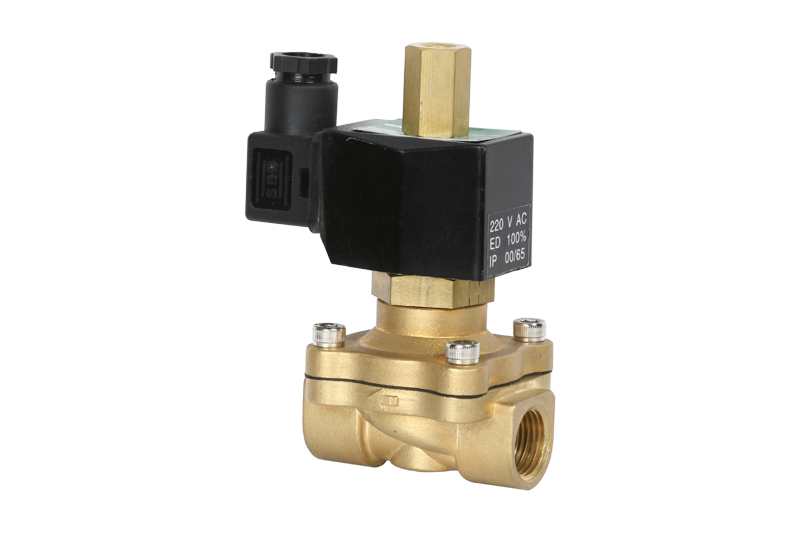

2WC-15 2WC-20 2WC-25 2WC-35 2WC-40 2WC-50MODEL
2WC-15
2WC-20
2WC-25
2WC-35
2WC-40
2WC-50
Pipe Size
G1/2"
G3/4"
G1"
G11/4"
G11/2"
G2"
Orifice
16mm
20mm
25mm
35mm
40mm
50mm
CV Value
4.8
7.6
12
24
28
48
Working Medium
Water,Weak acid&alkali
Motion Pattern
Direct Drive Type
Type
Diaphragm Type,Normal Open
Operation Fluid Viscosity
Below 20 CS
Working-pressure
0～1.0MPa
Medium Temperature
-5～80℃
Body Material
Brass
Oil Seal Material
NBR or VITON
Install Method Wantonly Voltage AC380V,220V,110V,36V,24V
DC220V,110V,36V,24V,12V
-

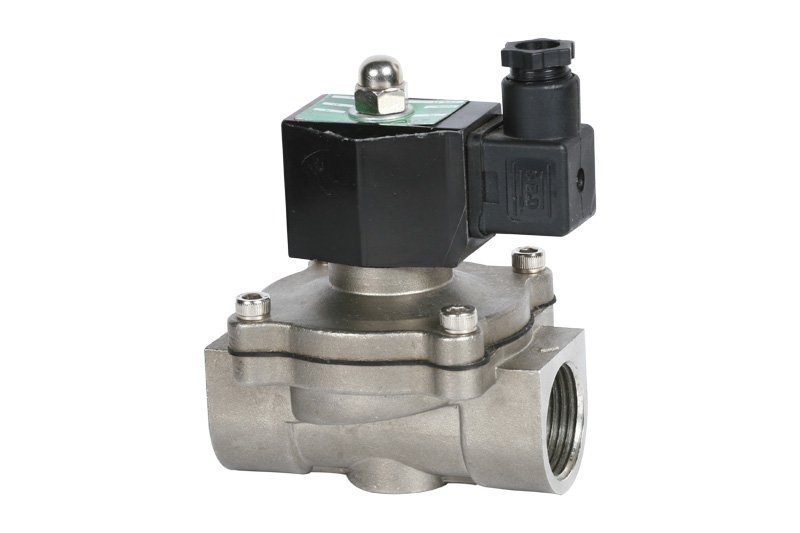

2WB-15 2WB-20 2WB-25 2WB-35 2WB-40 2WB-50MODEL
2WB-15
2WB-20
2WB-25
2WB-35
2WB-40
2WB-50
Pipe Size
G1/2"
G3/4"
G1"
G11/4"
G11/2"
G2"
Orifice
16mm
20mm
25mm
35mm
40mm
50mm
CV Value
4.8
7.6
12
24
28
48
Working Medium
Water,Weak acid&alkali
Motion Pattern
Direct Drive Type
Type
Diaphragm Type
Operation Fluid Viscosity
Below 20 CS
Working-pressure
0～1.0MPa
Medium Temperature
-5～80℃
Body Material
Stainless Steel
Oil Seal Material
NBR or VITON
Install Method
Wantonly
Voltage
AC380V,220V,110V,36V,24V
DC220V,110V,36V,24V,12V
-

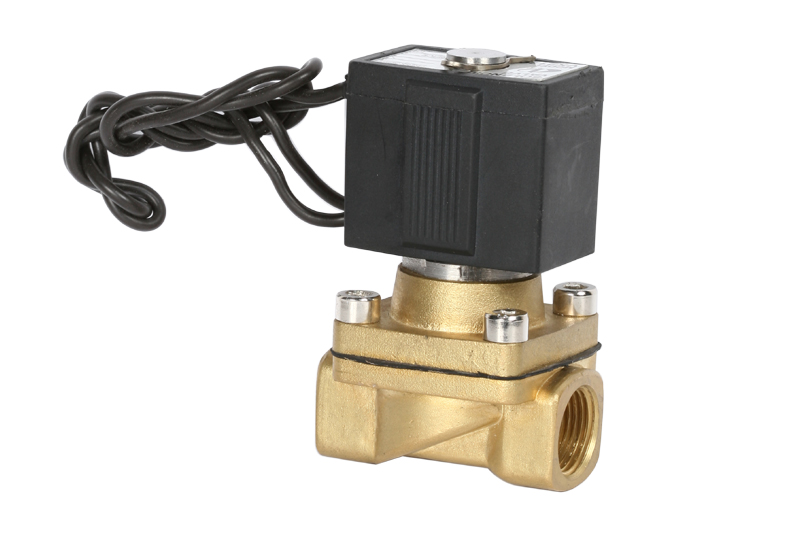

VX2120-06 VX2120-08 VX2130-10Model VX2120-06 VX2120-08 VX2130-10 VX2130-15 Port Size G1/8" G1/4" G3/8" G1/2" Working Medium Air, Water, Steam Motion Pattern Direct Drive Type Type Normal Close Working-pressure 0~1.0Mpa Orifice mm 3mm 10mm Working Temperature -5~150℃ -5~80℃ Materail of Oil Seal VITON NBR Voltage AC380V, 220V, 110V, 36V,24V DC220V, 110V, 36V, 24V, 12V
-

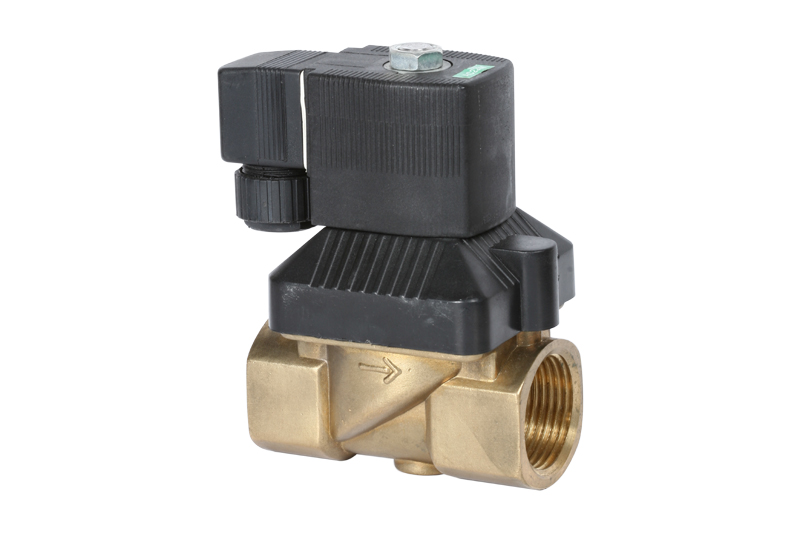

YQ5231008 YQ5231010 YQ5231015 YQ5231020 YQ5231025Model Pipe Screw Orifice Working Environment Medium Kv Value Power Change Power Thread mm Pressure Temperature Temperature m3/h Consumption Frequency Voltage (G) Mpa ℃ ℃ AC(VA) DC(W) (Hz) YQ5231008 1/4" 13 0.3~5.0 -20~+50 0~+180 3.6 14 8 ≥1 AC: 50Hz YQ5231010 3/8" 24V, 36V, YQ5231015 1/2" 110V, 220V YQ5231020 3/4" 25 0.3~3.5 11 ≥0.5 DC: YQ5231025 1" 24,12V
-
YQ2231008 YQ2231010 YQ2231015 YQ2231020 YQ2231025 YQ2231032 YQ2231040 YQ2231050Model Pipe Screw Orifice Working Environment Medium Kv Value Power Change Power Thread mm Pressure Temperature Temperature m3/h Consumption Frequency Voltage (G) Mpa ℃ ℃ AC(VA) DC(W) (Hz) YQ2231008 1/4" 10 0.03 ~ 1.0 -10 ~ +55 -10 ~ +90 2 14 8 ≥1 AC:50Hz YQ2231010 3/8" YQ2231015 1/2" 13 3.6 24V,36V YQ2231020 3/4" 20 8.3 ≥0.5 110V,220V YQ2231025 1" 25 11 DC: YQ2231032 1.1/4" 40 0.07 ~ 1.6 25 ≥0.33 24V,12V YQ2231040 1.1/2" 30 YQ2231050 2" 50 45
-

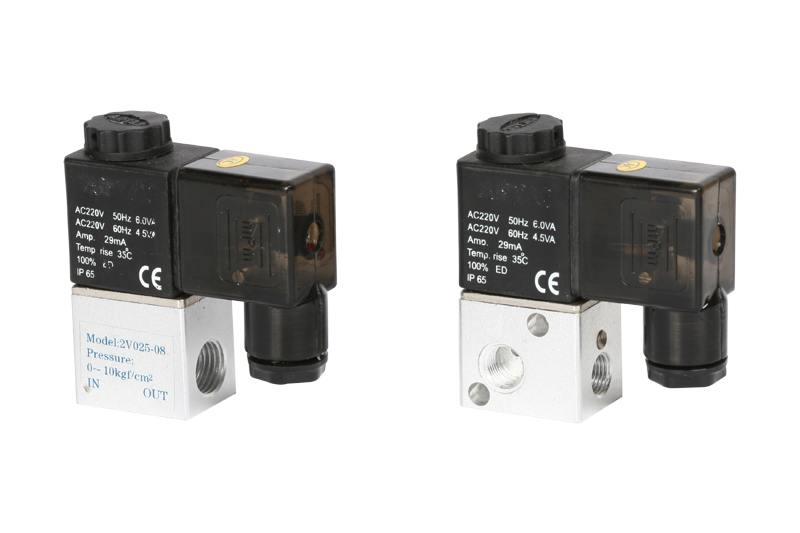

YQD22-08 YQD22-06 YQD22-06EItem Valve Type Pipe Thread Nominal Diameter Applicable Fluid Pressure Range Operating Method Max.Action Frequency Temperature YQD22-08 2Position/2Way 1/4 2.5 compressed air 0~0.8Mpa direct action type 5 cycle/sec -5~50℃ YQD22-06 2Position/2Way 1/8 1.2 YQD22-06E 1/8 1.2
