AC 系列气源件
AC 系列气源处理件具有标准的模块化设计，能任意分解、组合。其中过滤器采用新颖的旋风叶片分水，自动放水结构； 减压阀采用平衡式进气，带溢流装置，稳压、锁紧牢固； 油雾器采用不停气供油装置，提供良好的润滑作用。
-

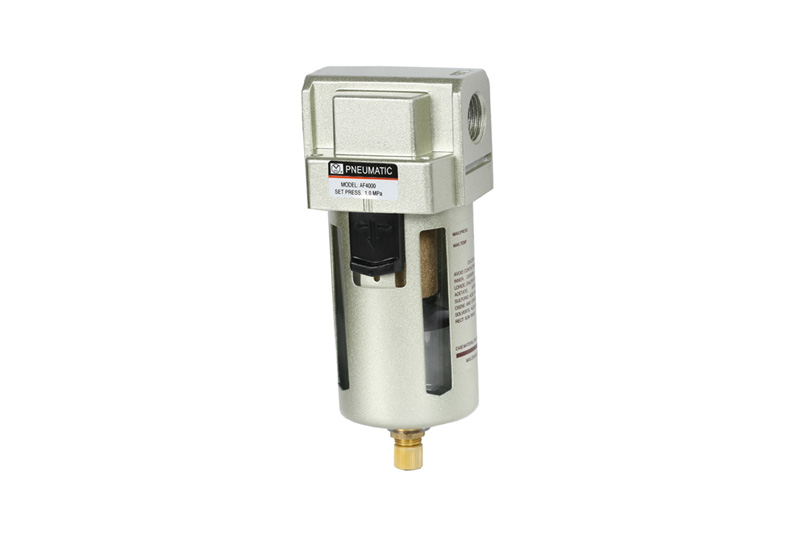

AF2000-01 AF2000-02
AF3000-02 AF3000-03 AF4000-03 AF4000-04 AF4000-06
AF5000-06 AF5000-10Model AF AF AF AF AF AF AF AF AF AC--AF 2000-01 2000-02 3000-02 3000-03 4000-03 4000-04 4000-06 5000-06 5000-10 Thread Size (G/BSP) 1/8" 1/4" 1/4" 3/8" 3/8" 1/2" 3/4" 3/4" 1" Drain Capacity 15 cm3 20 cm3 45 cm3 130 cm3 Max. Flow rate 500L/min 2000L/min 4000L/min 5000L/min Medium Compressed Air Max.supply pressure 15kgf/cm2 Max.operating pressure 9.9kgf/cm2 Regulating range 0.5~8.5kgf/cm2 Temperature 5~60℃ Filtration Standard: 20 micron (Option:5,10,40,70,100micron) Body material Aluminum Die-casting Forming Bowl material Polycarbonate Bracket B240 B340 B440 B441 B540 Draining Type Manual Drain/ Auto Drain Auto Drain Model AF AF AF AF AF AF AF AF AF 2000-01D 2000-02D 3000-02D 3000-03D 4000-03D 4000-04D 4000-06D 5000-06D 5000-10D Note: Different thread,body color are available.
-
AR2000-01 AR2000-02
AR3000-02 AR3000-03 AR4000-03 AR4000-04 AR4000-06
AR5000-06 AR5000-10Model AR AR AR AR AR AR AR AR AR AC--AR 2000-01 2000-02 3000-02 3000-03 4000-03 4000-04 4000-06 5000-06 5000-10 Thread Size (G/BSP) 1/8" 1/4" 1/4" 3/8" 3/8" 1/2" 3/4" 3/4" 1" Medium Compressed Air Max.supply pressure 15kgf/cm2 Max.operating pressure 9.9kgf/cm2 Regulating range 0.5~8.5kgf/cm2 Temperature 5~60℃ Guage Thread 1/8" 1/4" Guage Model Y40 Y50 Rated Flow(L/min) 550 2500 6000 8000 Bracket B220 B320 B420 Note: Different thread,body color are available.
-
AL2000-01 AL2000-02
AL3000-02 AL3000-03 AL4000-03 AL4000-04 AL4000-06
AL5000-06 AL5000-10Model AL AL AL AL AL AL AL AL AL AC-AL 2000-01 2000-02 3000-02 3000-03 4000-03 4000-04 4000-06 5000-06 5000-10 Thread Size (G/BSP) 1/8" 1/4" 1/4" 3/8" 3/8" 1/2" 3/4" 3/4" 1" Drain Capacity 25 cm3 50 cm3 130 cm3 Min.Oil Drop Flow (L/min) 15 30 40 40 50 50 190 Medium Clean Air Max.Supply Pressure 15kgf/cm2 Operating Pressure 0~9.9kgf/cm2 Temperature 5~60℃ Bracket B240 B340 B440 B441 B540 Body material Aluminum Die-casting Forming Bowl material Polycarbonate Note: Different thread,body color are available.
-
AW2000-01_AW2000-02
AW3000-02 AW3000-03 AW4000-03
AW5000-06 AW5000-10Model AW AW AW AW AW AW AW AW AW AC--AW 2000-01 2000-02 3000-02 3000-03 4000-03 4000-04 4000-06 5000-06 5000-10 Thread Size (G/BSP) 1/8" 1/4" 1/4" 3/8" 3/8" 1/2" 3/4" 3/4" 1" Bowl Capacity 15 cm3 20 cm3 45 cm3 130 cm3 Max. Flow rate 500L/min 2000L/min 4000L/min 5000L/min Medium Compressed Air Max.supply pressure 15kgf/cm2 Max.operating pressure 9.9kgf/cm2 Regulating range 0.5~8.5kgf/cm2 Temperature 5~60℃ Filtration Standard: 20 micron (Option:5,10,40,70,100micron) Body material Aluminum Die-casting Forming Bowl material Polycarbonate Guage Thread 1/8" 1/4" Guage Model Y40 Y50 Bracket B220 B320 B420 Draining Type Manual Drain/ Auto Drain Auto Drain Model AW AW AW AW AW AW AW AW AW 2000-01D 2000-02D 3000-02D 3000-03D 40000-03D 4000-04D 4000-06D 5000-06D 5000-10D Note: Different thread, body color are available.
-
AC2010-01 AC2010-02
AC3010-02 AC3010-03 AC4010-03 AC4010-04 AC4010-06
AC5010-06 AC5010-10Model AC AC AC AC AC AC AC AC AC AC--AW 2010-01 2010-02 3010-02 3010-03 4010-03 4010-04 4010-06 5010-06 5010-10 Thread Size (G/BSP) 1/8" 1/4" 1/4" 3/8" 3/8" 1/2" 3/4" 3/4" 1" Drain Capacity 15 cm3 20 cm3 45 cm3 130 cm3 Max. Flow rate 500L/min 2000L/min 4000L/min 5000L/min Medium Compressed Air Max.supply pressure 15kgf/cm2 Max.operating pressure 9.9kgf/cm2 Regulating range 0.5~8.5kgf/cm2 Temperature 5~60℃ Filtration Standard: 20 micron (Option:1,5,10,40,70,100micron) Body material Aluminum Die-casting Forming Bowl material Polycarbonate Guage Thread 1/8" 1/4" Guage Model Y40 Y50 Bracket Y20T Y30T Y40T Y41T Y50T Draining Type Manual Drain/ Auto Drain Auto Drain Model AC AC AC AC AC AC AC AC AC 2010-01D 2010-02D 3010-02D 3010-03D 4010-03D 4010-04D 4010-06D 5010-06D 5010-10D Note: Different thread, body color are available.
-

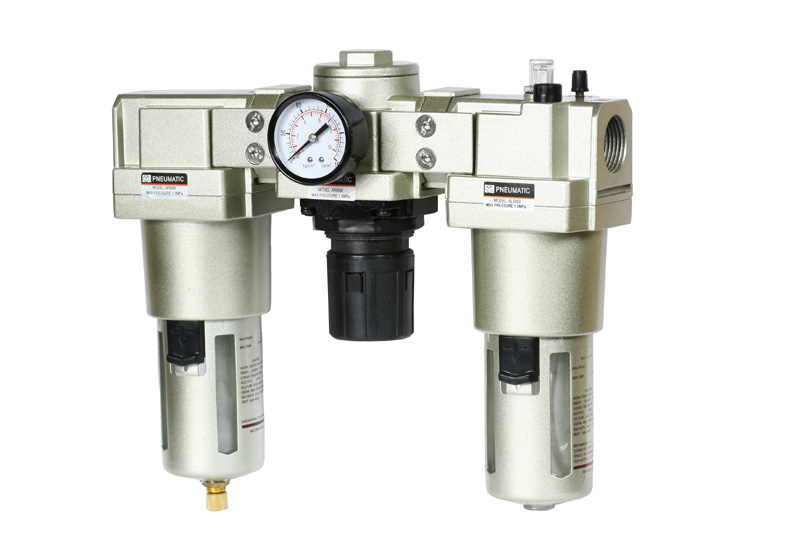

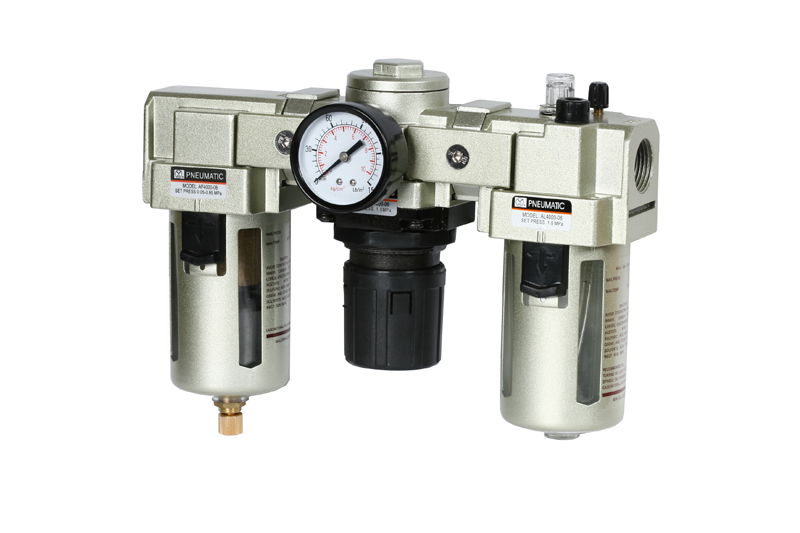

AC2000-01 AC2000-02
AC3000-02 AC3000-03 AC4000-03 AC4000-04 AC4000-06
AC5000-06 AC5000-10Model AC AC AC AC AC AC AC AC AC AC-F+R+L 2000-01 2000-02 3000-02 3000-03 4000-03 4000-04 4000-06 5000-06 5000-10 Thread Size (G/BSP) 1/8" 1/4" 1/4" 3/8" 3/8" 1/2" 3/4" 3/4" 1" Drain Capacity 15 cm3 20 cm3 45 cm3 130 cm3 Max. Flow rate 500L/min 2000L/min 4000L/min 5000L/min Medium Compressed Air Max.supply pressure 15kgf/cm2 Max.operating pressure 9.9kgf/cm2 Regulating range 0.5~8.5kgf/cm2 Temperature 5~60℃ Filtration Standard: 20 micron (Option:1,5,10,40,70,100micron) Body material Aluminum Die-casting Forming Bowl material Polycarbonate Guage Thread 1/8" 1/4" Guage Model Y40 Y50 Bracket Y20L Y30L Y40L Y41L Y50L Draining Type Manual Drain/ Auto Drain Auto Drain Model AC AC AC AC AC AC AC AC AC 2000-01D 2000-02D 3000-02D 3000-03D 4000-03D 4000-04D 4000-06D 5000-06D 5000-10D Note: Different thread, body color are available.
